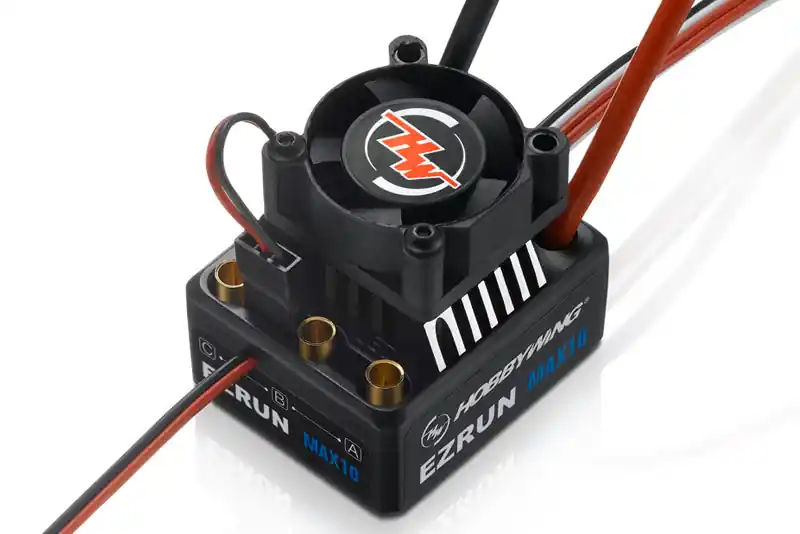

Favoriet [ HW30102602 ] Hobbywing EzRun Max 10, 60A, 1/10 esc

Type
Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Waterproof – Yes

Cont./Peak Current – 60A/450A
Input Voltage – 2-3S LiPo/6-9 Cells NiMH
BEC Output – Switch Mode: 6V/7.4V,3A

Wires & Connectors
Input Wires – Red-14AWG-200mm*1/Black-14AWG-200mm*1
Output Wires – Black-14AWG-200mm*3
Input Connectors – No
Output Connectors – 3.5 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan
Size – 25.0×25.0x10.0mm
Voltage Range – 5-7.4V
Powered by – BEC

ESC Programing via
SET Button on ESC – Supported
LED Program Box – Supported
LCD Program Box – Supported
WiFi Module – Supported
Program Port – PRG/Fan Port

Firmware
Firmware Upgrade – Supported

Size & Weight
Size – 39.4×32.8×23.1mm
Weight – 67.8g
